ASD UHB2A-NEOX Series (UFO HIGH BAYS)

Roll over image to zoom in Click on image to zoom

Selected model: UHB2A-NEOX-150BK · SKU ASD-UHB2A-NEOX-150BK

Download Cut Sheet (PDF) Request a Quote

ModelUHB2A-NEOX-150BKSKUASD-UHB2A-NEOX-150BK

Wattage	100W / 120W / 150W (selectable)
Voltage	120-277V
Sensor base	3-pin
Dimming	0-10V
Lumens	28,675 lm
Cct	3500K / 4000K / 5000K (selectable)
Finish	Black
Dimensions	10-1/4" x 10-1/4" x 4-11/16"
Pre installed	Cord 10 ft
Operating environment	Wet location, IK08, -40°F to 131°F
Certification	UL (E473804), DLC Premium

ASD LED UFO High Bay with Q-base NEOX series 100/120/150W 120-277V 0-10V Dimmable 200lm/W 3000/4000/5000K with 10ft cord Black UL DLC Premium

Model / Option	SKU	Price
UHB2A-NEOX-150BK	ASD-UHB2A-NEOX-150BK	$102.00

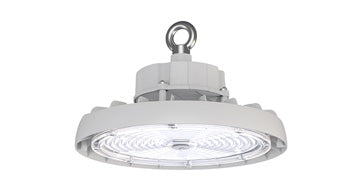

UHB2A-NEOX-150WH	ASD-UHB2A-NEOX-150WH	$102.00

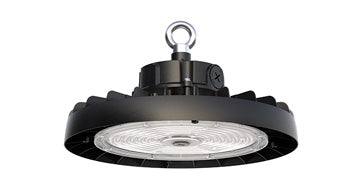

UHB2A-NEOX-200BK	ASD-UHB2A-NEOX-200BK	$120.36

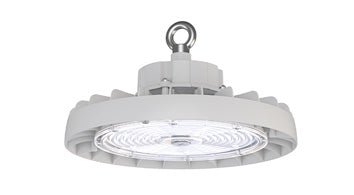

UHB2A-NEOX-200WH	ASD-UHB2A-NEOX-200WH	$120.36
UHB2A-NEOX-240BK	ASD-UHB2A-NEOX-240BK	$138.60

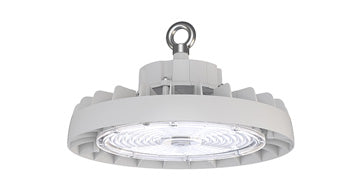

UHB2A-NEOX-240WH	ASD-UHB2A-NEOX-240WH	$138.60
UHB2A-NEOX-300BK	ASD-UHB2A-NEOX-300BK	$190.20

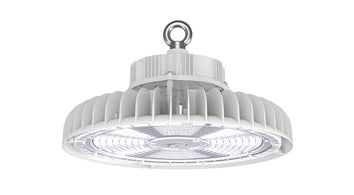

UHB2A-NEOX-300WH	ASD-UHB2A-NEOX-300WH	$190.20

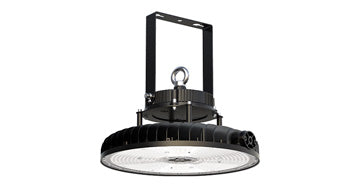

UHB2A-NEOX-500BK	ASD-UHB2A-NEOX-500BK	$426.00

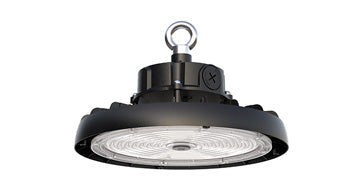

UHB2AHV-NEOX-150BK	ASD-UHB2AHV-NEOX-150BK	$139.20
UHB2AHV-NEOX-200BK	ASD-UHB2AHV-NEOX-200BK	$169.20

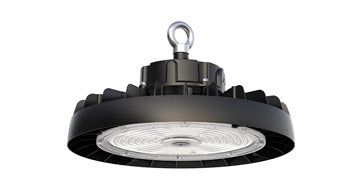

UHB2AHV-NEOX-240BK	ASD-UHB2AHV-NEOX-240BK	$178.80

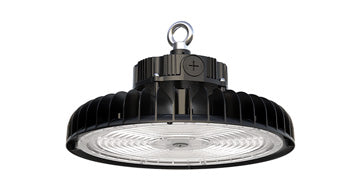

UHB2AHV-NEOX-300BK	ASD-UHB2AHV-NEOX-300BK	$247.20

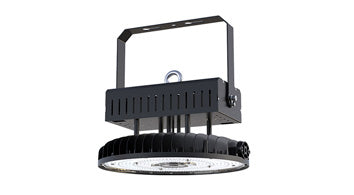

UHB2AHV-NEOX-500BK	ASD-UHB2AHV-NEOX-500BK	$540.00

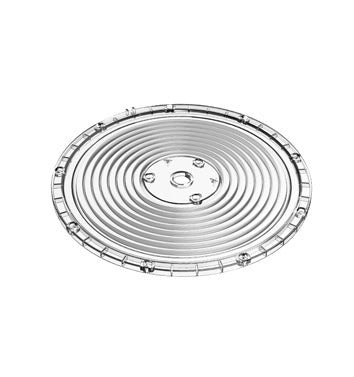

L120B-UHB2A	ASD-L120B-UHB2A	$8.40

Prices are per unit. Click any row to select that model, then add to cart — or request a quote for project and bid pricing, any quantity.

DESIGN. LED UFO HIGH BAY with Q-base NEOX Series is extremely efficient with a 200lm/W output. Die-cast aluminum housing with excellent heat dissipation along with an anti-glare PC lens provide many years of use. It can operate in temperatures ranging from -40 to 131°F. The device is equipped with a 0-10V dimmable driver, which allows you to adjust the brightness to suit your needs. Surge protection 6kV protects the fixture from voltage spikes and current surges. The fixture also features an IK08 impact resistance rating, ensuring durability against mechanical impact in demanding environments.

VARIETY. Fixture is designed to operate on 120-277V or 200-480V circuits (depending on model) and comes in black and white finish.

COLOR AND POWER SELECTABLE. You can choose either a 3000K neutral white, 4000K cool white or 5000K daylight color temperature, and change the power with a simple switch.

INSTALLATION. this fixture supports three different mounting styles: a suspended setup for a floating appearance, a surface-mounted option for a flush fit, and a pendant-style installation for a stylish, hanging effect. Perfect commercial or industrial solution for warehouses, supermarkets, retail stores, gyms, and many other applications.

ADVANTAGES: With calculated lifespan up to 143 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!

Extreme efficiency 200lm/W
IP69K rated, allows high pressure washing
IK08 protection against impacts
Color and Power selectable
