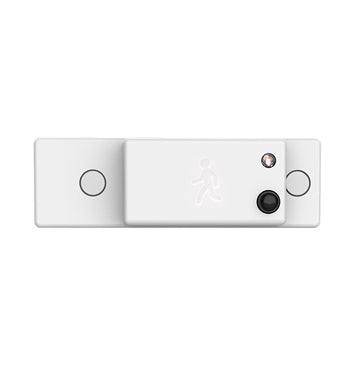

DESIGN. MICROWAVE MOTION SENSOR WITH MAGNET BASE provides energy-effective lighting contol solution that enables the lights light up upon detection of movement and turn itself off if not required. It operates on 12V input power with 1-10V dimming option. The sensor can be installed at the maximum height of 16.4ft.
DEFAULT SETTINGS. You can use default settings to cover most standard applications: Detection Area - 100%, Holdtime - 10min, Daylight Threshold - disable, Standby Period - 0S, Standby Dimming Level - 10%
ASD Smart Control. Using ASD NLS application for your smartphone you can adjust: Detection area 25%-100%, Holdtime 5s-30min, Daylight threshold 2-2000Lux, Standby Dimming Level 10-50%, Standby Period 0s - +8. ASD NLS also allows grouping and schedule programming of the sensors, creating scenarios, different areas, monitoring energy consumption, and submitting maintenance requests.
EMERGENCY BACK-UP. The sensor is compatible with ASD emergency Back-up, switches to Emergency mode when the power is off, and is back to the programmed operation mode when AC mode is renewed.
APPLICATION: Sensor with magnet base is ideal solution for LED back-lit panels.
