ASD LED Linear High Bay with Q-base

ASD LightingSKU: ASD-WHB5B-NEOX-100

Model: WHB5B-NEOX-100

Price:

$114.91

Quantity:

Selected model: WHB5B-NEOX-100 · SKU ASD-WHB5B-NEOX-100

Download Cut Sheet (PDF) Request a Quote

ModelWHB5B-NEOX-100SKUASD-WHB5B-NEOX-100

Wattage	60W / 80W / 100W (selectable)
Voltage	120-277V
Sensor base	3-pin (Q-base)
Dimming	0-10V
Lumens	19,848 lm
Cct	3500K / 4000K / 5000K (selectable)
Finish	White
Dimensions	14-15/16" x 9-13/16" x 2-15/16"
Operating environment	Damp location, IK10
Cri	>80
Certification	UL (E473804), DLC Premium

ASD LED Linear High Bay with Q-base 60/80/100W 120-277V 0-10V Dimmable 200lm/W 3500/4000/5000K IK10 UL DLC Premium

Model / Option	SKU	Price
WHB5B-NEOX-100	ASD-WHB5B-NEOX-100	$114.91

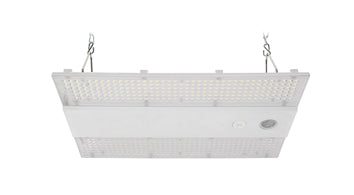

WHB5B-NEOX-160	ASD-WHB5B-NEOX-160	$116.88

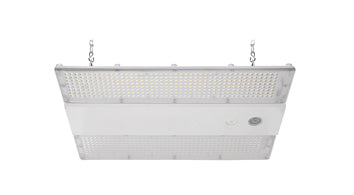

WHB5B-NEOX-220	ASD-WHB5B-NEOX-220	$150.00

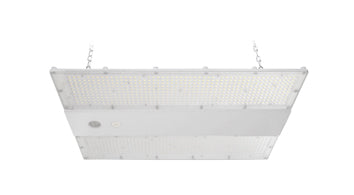

WHB5B-NEOX-320	ASD-WHB5B-NEOX-320	$204.84

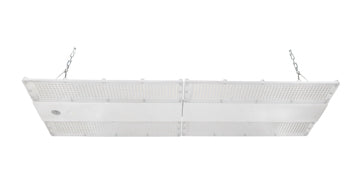

WHB5B-NEOX-500	ASD-WHB5B-NEOX-500	$303.60

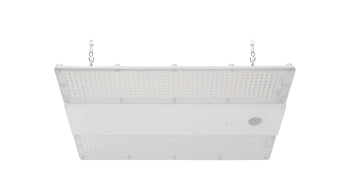

WHB5BHV-NEOX-220	ASD-WHB5BHV-NEOX-220	$190.80

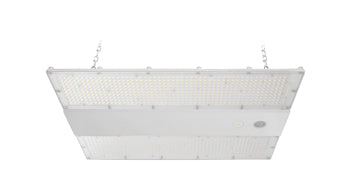

WHB5BHV-NEOX-320	ASD-WHB5BHV-NEOX-320	$240.00

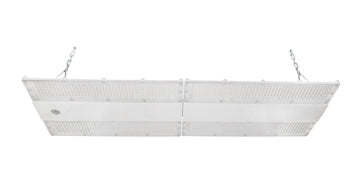

WHB5BHV-NEOX-500	ASD-WHB5BHV-NEOX-500	$392.40

Prices are per unit. Click any row to select that model, then add to cart — or request a quote for project and bid pricing, any quantity.

DESIGN. LED LINEAR HIGH BAY WITH Q-BASE NEOX SERIES is extremely efficient with a 200lm/W output. It has a built-in Q-base, allowing you to install the microwave motion or PIR sensor. Die-cast aluminum housing with excellent heat dissipation along with an anti-glare PC lens provide many years of use. Surge protection 6kV protects the fixture from voltage spikes and current surges.

VARIETY. Fixture is designed to operate on 120-277V or 277-480V circuits.

COLOR AND POWER SELECTABLE. You can choose either a 3500K neutral white, 4000K cool white or 5000K daylight color temperature, and change the power with a simple switch.

INSTALLATION. This fixture supports three different mounting styles: a suspended setup for a floating appearance, a surface-mounted option for a flush fit, and a pendant-style installation for a stylish, hanging effect.

ADVANTAGES: With calculated lifespan up to 167 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!

Extreme efficiency 200lm/W
Die-cast Aluminium Housing
Color and Power Selectable
IK10 impact protection
