ASD LED Area Light with Q-base and Photocell NEOX series

Roll over image to zoom in Click on image to zoom

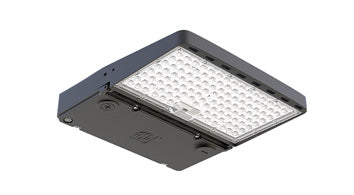

Selected model: LSB5B-NEOX-150BK · SKU ASD-LSB5B-NEOX-150BK

Download Cut Sheet (PDF) Request a Quote

ModelLSB5B-NEOX-150BKSKUASD-LSB5B-NEOX-150BK

Wattage	100W / 120W / 150W (selectable)
Voltage	120-277V
Sensor base	3-pin (Q-base)
Dimming	0-10V
Lumens	28,213 lm
Cct	3000K / 4000K / 5000K (selectable)
Finish	Black
Dimensions	12-5/16" x 11-5/16" x 2-7/16"
Pre installed	Photocell, cord 4 ft
Operating environment	Wet location, surge protection 6kV
Cri	>70
Certification	UL (E473804), DLC Premium

ASD LED Area Light with Q-base NEOX series 100/120/150W 120-277V 0-10V Dimmable 200Lm/W 3000/4000/5000K with Photocell Black UL DLC Premium

Model / Option	SKU	Price
LSB5B-NEOX-150BK	ASD-LSB5B-NEOX-150BK	$138.60
LSB5B-NEOX-150BR	ASD-LSB5B-NEOX-150BR	$138.60

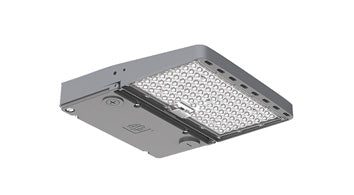

LSB5B-NEOX-150SL	ASD-LSB5B-NEOX-150SL	$138.60

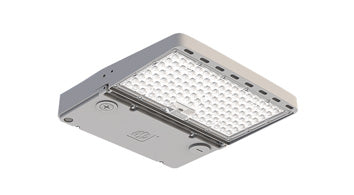

LSB5B-NEOX-150WH	ASD-LSB5B-NEOX-150WH	$138.60
LSB5B-NEOX-200BR	ASD-LSB5B-NEOX-200BR	$153.24
LSB5B-NEOX-240BR	ASD-LSB5B-NEOX-240BR	$181.20
LSB5B-NEOX-300BK	ASD-LSB5B-NEOX-300BK	$201.00

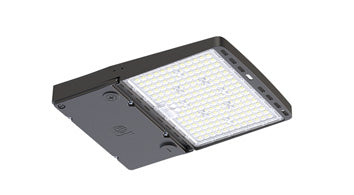

LSB5B-NEOX-300BR	ASD-LSB5B-NEOX-300BR	$201.00

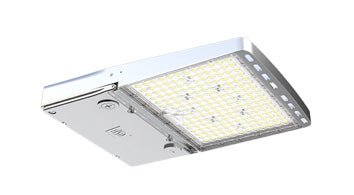

LSB5B-NEOX-300SL	ASD-LSB5B-NEOX-300SL	$201.00

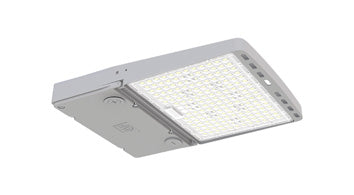

LSB5B-NEOX-300WH	ASD-LSB5B-NEOX-300WH	$201.00

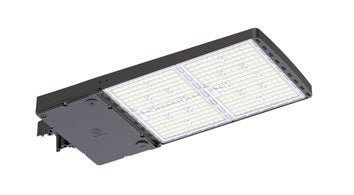

LSB5B-NEOX-500BR	ASD-LSB5B-NEOX-500BR	$336.00

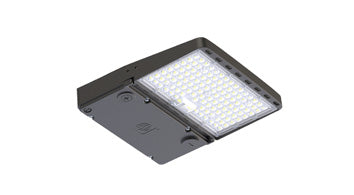

LSB5BHV-NEOX-150BR	ASD-LSB5BHV-NEOX-150BR	$168.67
LSB5BHV-NEOX-200BR	ASD-LSB5BHV-NEOX-200BR	$187.20
LSB5BHV-NEOX-240BR	ASD-LSB5BHV-NEOX-240BR	$211.80
LSB5BHV-NEOX-300BR	ASD-LSB5BHV-NEOX-300BR	$252.67

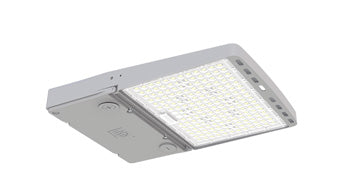

LSB5BHV-NEOX-300WH	ASD-LSB5BHV-NEOX-300WH	$252.67
LSB5BHV-NEOX-500BR	ASD-LSB5BHV-NEOX-500BR	$420.00

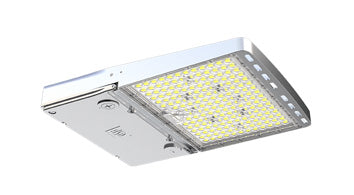

LSB5BHV-NEOX-300SL	ASD-LSB5BHV-NEOX-300SL	$252.67

Prices are per unit. Click any row to select that model, then add to cart — or request a quote for project and bid pricing, any quantity.

DESIGN. LED AREA LIGHT WITH Q-BASE AND PHOTOCELL NEOX Series is extremely efficient with a 200lm/W output. With 10kV surge protection and a 0-10V dimmable driver. The built-in Q-base allows you to install the microwave or PIR motion sensor. Integrated photocell switches the fixture on at night time. The photocell can be disabled with built-in switch.

VARIETY. Fixture is designed to operate on 120-277V or 200-480V circuits (depending on model) and is available in White, Black, Silver or Bronze finishes.

PHOTOCELL. The built-in Dusk to Dawn Photocell will automatically activate/deactivate the fixture depending on the time of day. The photocell can be disabled with on-off switch.

COLOR SELECTABLE. You can choose between 3,000 K warm white, 4,000 K cool white, and 5,000 K daylight white color temperatures.

INSTALLATION. You can mount the fixture using a wide range of brackets: for example, with a slip-fitter, arm mount or yoke (all sold separately). This will enable you to optimally adjust the fixture to suit your requirements. The fixture can be mounted either on a junction box or directly on the wall. It is also Wet Locations rated and perfect commercial or industrial solution for outdoor lighting.

ADVANTAGES: With calculated lifespan up to 145 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!

Extreme efficiency 200lm/W
10kV surge protection against voltage and current surges
Color and Power selectable
3G vibration rating that conforms to standards for roadway
