ASD JBR Series (LED WAFER LIGHTS)

ASD LightingSKU: ASD-JBR-4D9WH

Model: JBR-4D9WH

Price:

$6.97

Quantity:

Selected model: JBR-4D9WH · SKU ASD-JBR-4D9WH

Download Cut Sheet (PDF) Request a Quote

ModelJBR-4D9WHSKUASD-JBR-4D9WH

Size	4 inch
Wattage	9W
Voltage	120V
Dimming	Triac, 10-100%
Lumens	831 lm
Cct	2700K / 3000K / 3500K / 4000K / 5000K (selectable)
Finish	White
Dimensions	4-15/16" x 4-15/16" x 7/8"
Operating environment	IC rated, Wet location
Cri	>90
Certification	ETL (5029309), Energy Star, Title 24, JA8

Model / Option	SKU	Price
JBR-4D9WH	ASD-JBR-4D9WH	$6.97
JBR-4D12WH	ASD-JBR-4D12WH	$7.23
JBR-4D9BK	ASD-JBR-4D9BK	$7.36
JBR-6D12WH	ASD-JBR-6D12WH	$7.36
JBR-4D12BK	ASD-JBR-4D12BK	$7.43
JBR-3D6WH	ASD-JBR-3D6WH	$7.68

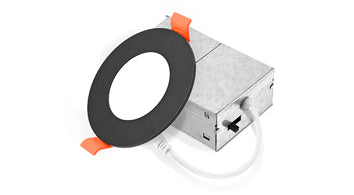

JBR-3D6BK	ASD-JBR-3D6BK	$8.00
JBR-6D12BK	ASD-JBR-6D12BK	$8.77
JBR-6D15WH	ASD-JBR-6D15WH	$9.28

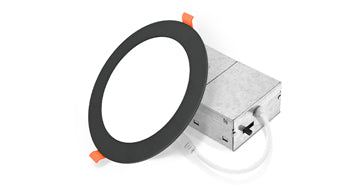

JBR-6D15BK	ASD-JBR-6D15BK	$9.85
JBR-8D20WH	ASD-JBR-8D20WH	$12.16
JBR-8D20BK	ASD-JBR-8D20BK	$14.08
JBR-12D24WH	ASD-JBR-12D24WH	$22.01

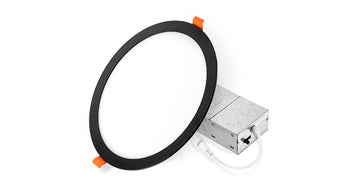

JBR-12D24BK	ASD-JBR-12D24BK	$22.40

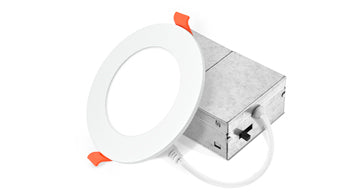

JBR-4D9BR-6P (Pack of 6)	ASD-JBR-4D9BR-6P	$44.16
JBR-4D9NK-6P (Pack of 6)	ASD-JBR-4D9NK-6P	$46.08

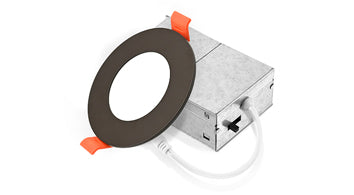

JBR-3D6BR-6P (Pack of 6)	ASD-JBR-3D6BR-6P	$48.00
JBR-3D6NK-6P (Pack of 6)	ASD-JBR-3D6NK-6P	$51.84

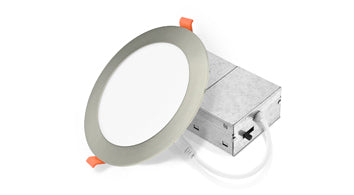

JBR-6D12NK-6P (Pack of 6)	ASD-JBR-6D12NK-6P	$56.08
JBR-4D9WH-12P (Pack of 12)	ASD-JBR-4D9WH-12P	$68.32

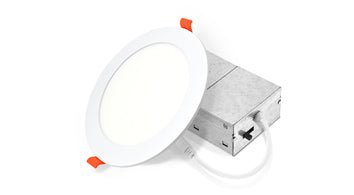

JBR-6D12WH-12P (Pack of 12)	ASD-JBR-6D12WH-12P	$72.16
JBR-4D12WH-12P (Pack of 12)	ASD-JBR-4D12WH-12P	$80.64
JBR-6D12BK-12P (Pack of 12)	ASD-JBR-6D12BK-12P	$81.44
JBR-4D9BK-12P (Pack of 12)	ASD-JBR-4D9BK-12P	$81.44

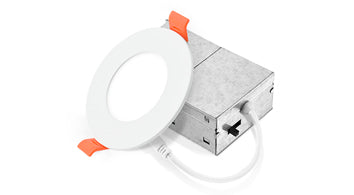

JBR-3D6WH-12P (Pack of 12)	ASD-JBR-3D6WH-12P	$89.92
JBR-3D6BK-12P (Pack of 12)	ASD-JBR-3D6BK-12P	$94.40
JBR-6D15WH-12P (Pack of 12)	ASD-JBR-6D15WH-12P	$102.88

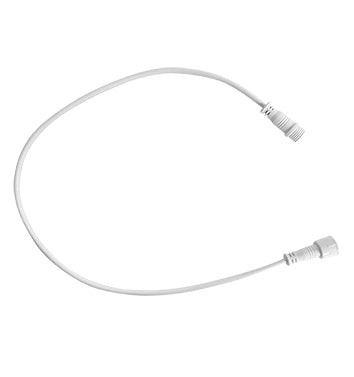

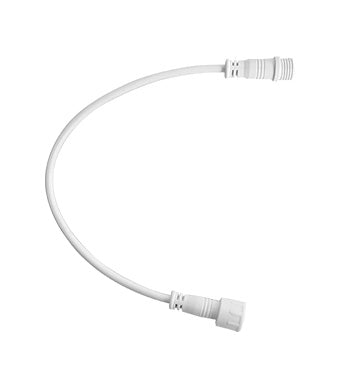

EC-10A-6PACK (Pack of 6)	ASD-EC-10A-6PACK	$7.20
EC-20A-6PACK (Pack of 6)	ASD-EC-20A-6PACK	$9.76

Prices are per unit. Click any row to select that model, then add to cart — or request a quote for project and bid pricing, any quantity.

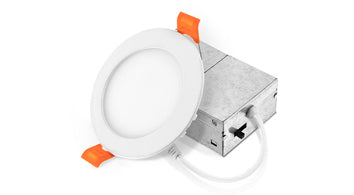

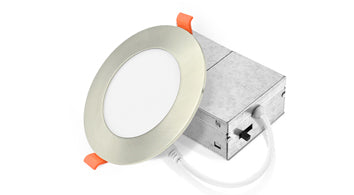

DESIGN. LED ROUND WAFER RECESSED MINI PANEL with a classic, low-profile design is an ideal solution for low ceilings. This fixture has a J-box, plug & twist connector, spring-loaded clips, and requires only 2" of ceiling space, making the installation process quick and easy. The acrylic lens with a 110° beam angle and CRI90+ grants you even light. It is designed to operate on 120V circuits, it offers smooth dimming capabilities from 10% to 100%.

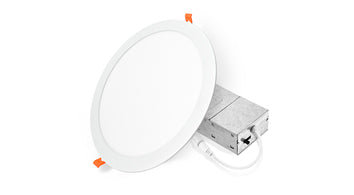

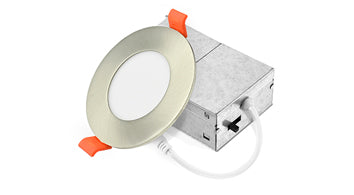

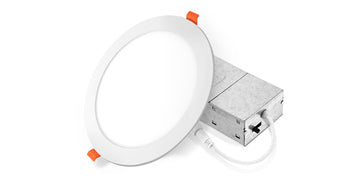

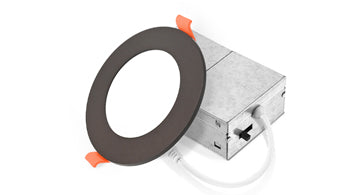

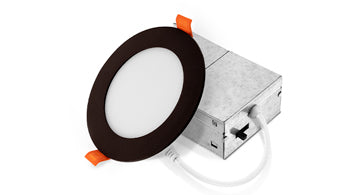

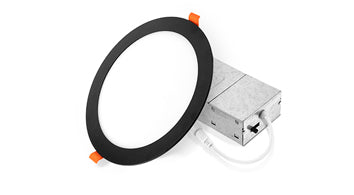

VARIETY. This fixture is available in round shapes, with sizes of 3", 4", 6", 8", and 12". Choose from White, Black, Nickel, or Bronze finishes.

COLOR SELECTABLE. You can choose either a 2700K soft white, 3000K warm white, 3500K neutral white, 4000K cool white, or 5000K daylight color temperature.

INSTALLATION. This fixture is IC rated so there is no can or any other housing required. It is also Wet Locations rated, making it perfect for kitchen, bathroom or any other common areas.

ADVANTAGES: With a lifespan of 54,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with ETL, Energy Star and T24 certifications to guarantee top quality products and safety!

MODEL WITH BATTERY BACK-UP. The built-in battery back-up provides 90 minutes of power in case of emergency.

Low-profile design is an ideal solution for low ceilings
CRI90+ Rich and natural colors
5 color temperature options
IC rated canless solution
